GD32VW553系列
-
概述
-
产品组合
-
产品选择器
-
文档
概述
J9集团创新推出支持Wi-Fi 6及Bluetooth LE 5.2无线连接的GD32VW553系列MCU，集成的2.4GHz Wi-Fi 6射频 ？椴捎肐EEE 802.11ax标准，并向下兼容IEEE 802.11b/g/n标准，可以适用于不同的网络环境。片上集成的Bluetooth LE 5.2射频 ？，能够以最新的蓝牙规范延长通信距离、提高吞吐量、增强安全性和节省电能。面向实时处理和高效通信需求，GD32VW553系列MCU采用了全新的开源指令集架构RISC-V处理器内核，主频可达160MHz。集成了高达4MB Flash及320KB SRAM，另有32KB可配置指令高速缓存(I-Cache)，大幅提升了CPU处理效率。不仅具备出色的无线性能，芯片还配置了丰富的通用有线接口。GD32VW553还具备多重安全特性以简化高性能无线设备的安全连接和管理，从而进一步提升系统安全强度。供电电压1.8V~3.6V，并提供了85℃~105℃宽温选择，以满足工控互联、照明设备以及插座面板等高温场景应用所需。
J9集团创新提供免费的GD32VW55x系列Wi-Fi&BLE SDK软件开发框架，配套GD32 Embedded Builder图形化工具，支持可视化配置和代码生成。该SDK集成RTOS、硬件驱动、网络协议栈及主流物联网通信协议，并提供丰富的API文档和应用笔记，可显著提升开发效率，确 ？⒄吣芄磺崴晒菇ǜ咝阅堋⒌凸牡奈尴吡佑τ。

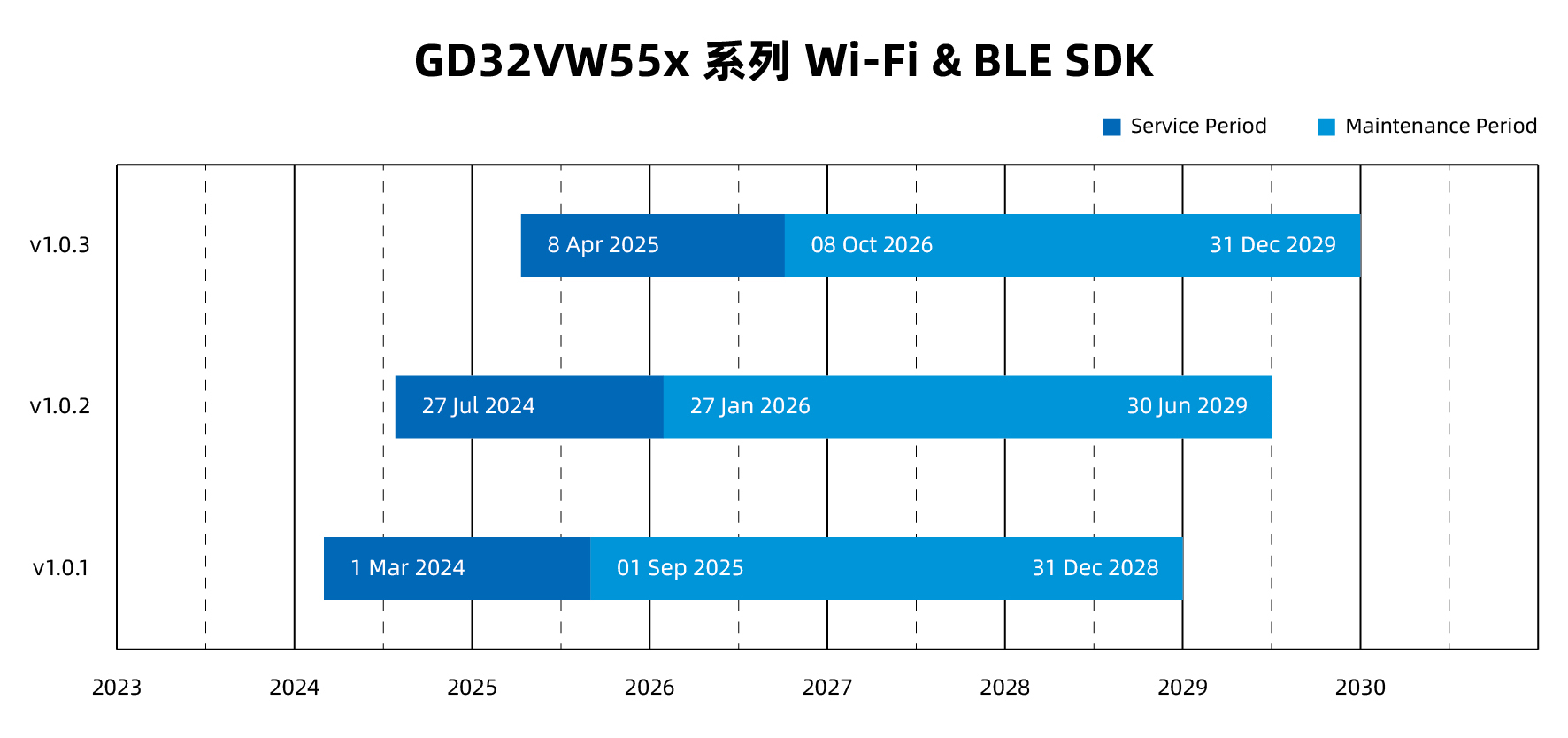

J9集团创新为GD32VW55x系列 Wi-Fi&BLE SDK建立了完善的版本管理机制以及服务和维护周期，确 ？⒄呋竦贸中榷ǖ募际踔С，具体请参考软件支持版本示意图：
探索J9集团产品组合
-
支持Wi-Fi 6和Bluetooth LE 5.2无线连接协议
采用RISC-V内核, 主频高达160MHz
存储容量支持4MB Flash以及320KB SRAM
产品选择器
8条结果
|
Part No.
|
Core
|
Series
|
Package
QFN40
QFN32
|
Max Speed (MHz)
|
Flash (Bytes)
2048K
4096K
|
SRAM (Bytes)
|
I/O
up to 28
up to 21
|
GPTM (32bit)
|
GPTM (16bit)
|
Advanced TM (16bit)
|
HRTM
|
Basic TM (64bit)
|
CPTM (16bit)
|
Basic TM (32bit)
|
Basic TM (16bit)
|
LPTM (32bit)
|
LPTM (16bit)
|
SysTick (64bit)
|
SysTick (24bit)
|
WDG
|
RTC
|
USART+UART
|
LPUART
|
I2C
|
QSPI
|
SPI
|
I2S
|
CAN 2.0B
|
USB 2.0
|
Ethernet
|
SDIO
|
EtherCAT Slave Controller
|
MFCOM
|
LIN
|
LCD-TFT
|
MIPI-DSI
|
Segment LCD
|
Camera
|
IPA
|
SAI
|
TMU
|
EXMC
|
CEC
|
14bit ADC Units (CHs)
|
12bit ADC Units (CHs)
|
12bit DAC Units
|
Comp
|
IEEE 802.11
|
Bluetooth
|
Dflash(Bytes)
|
SENT
|
Functional Safety
|
Security
|
Temperature Range(TA)
-40℃~85℃
-40℃~105℃
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RISC-V | GD32VW553 | QFN32 | 160 | 2048K | 320K | up to 21 | 2 | 2 | 1 | 0 | 2 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 | 1 | 1+2 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | (b/g/n/ax) HT20 | BLE 5.2 | 0 | 0 | 0 | 0 | -40℃~105℃ | |
| RISC-V | GD32VW553 | QFN32 | 160 | 4096K | 320K | up to 21 | 2 | 2 | 1 | 0 | 2 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 | 1 | 1+2 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | (b/g/n/ax) HT20 | BLE 5.2 | 0 | 0 | 0 | 0 | -40℃~105℃ | |
| RISC-V | GD32VW553 | QFN40 | 160 | 2048K | 320K | up to 28 | 2 | 2 | 1 | 0 | 2 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 | 1 | 1+2 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | (b/g/n/ax) HT20 | BLE 5.2 | 0 | 0 | 0 | 0 | -40℃~105℃ | |
| RISC-V | GD32VW553 | QFN40 | 160 | 4096K | 320K | up to 28 | 2 | 2 | 1 | 0 | 2 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 | 1 | 1+2 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | (b/g/n/ax) HT20 | BLE 5.2 | 0 | 0 | 0 | 0 | -40℃~105℃ | |
| RISC-V | GD32VW553 | QFN32 | 160 | 2048K | 320K | up to 21 | 2 | 2 | 1 | 0 | 2 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 | 1 | 1+2 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | (b/g/n/ax) HT20 | BLE 5.2 | 0 | 0 | 0 | 0 | -40℃~85℃ | |
| RISC-V | GD32VW553 | QFN32 | 160 | 4096K | 320K | up to 21 | 2 | 2 | 1 | 0 | 2 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 | 1 | 1+2 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | (b/g/n/ax) HT20 | BLE 5.2 | 0 | 0 | 0 | 0 | -40℃~85℃ | |
| RISC-V | GD32VW553 | QFN40 | 160 | 2048K | 320K | up to 28 | 2 | 2 | 1 | 0 | 2 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 | 1 | 1+2 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | (b/g/n/ax) HT20 | BLE 5.2 | 0 | 0 | 0 | 0 | -40℃~85℃ | |
| RISC-V | GD32VW553 | QFN40 | 160 | 4096K | 320K | up to 28 | 2 | 2 | 1 | 0 | 2 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 2 | 1 | 1+2 | 0 | 4 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1(9) | 0 | 0 | (b/g/n/ax) HT20 | BLE 5.2 | 0 | 0 | 0 | 0 | -40℃~85℃ |
